Part Numbers Only Please

[EOD Guy]

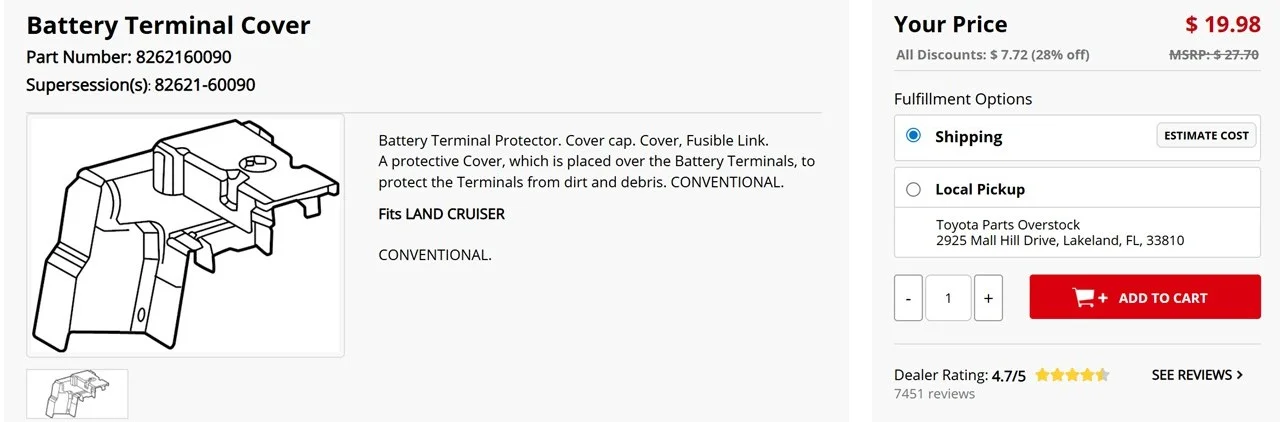

Battery Post Cover, 12v
82621-60090



[EOD Guy]

Body bolt trim covers
5172960020 – R/H
5172A60020 – L/H

From @Bad1975



[EOD Guy]

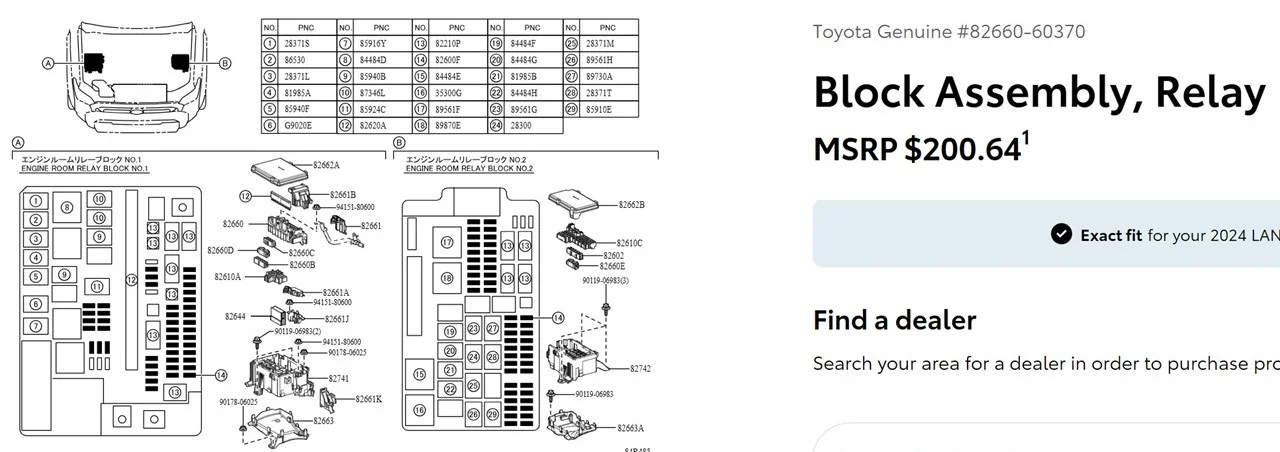

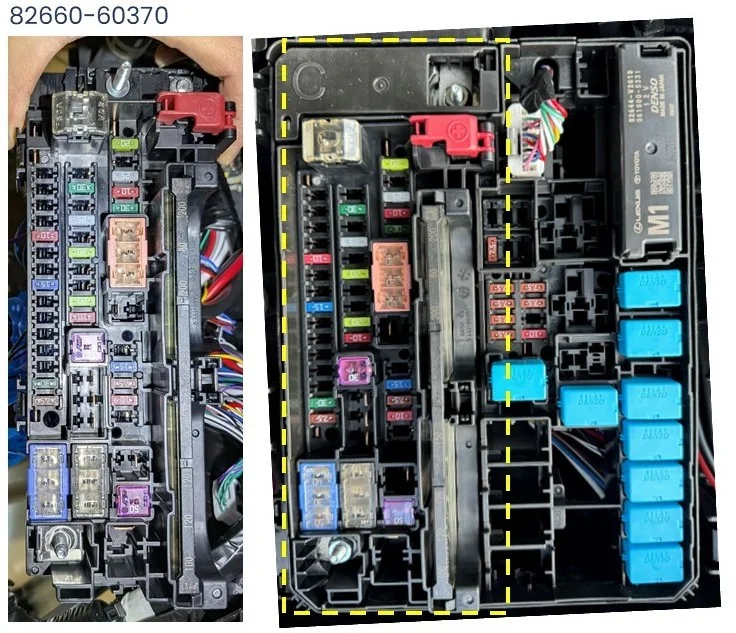

Fuse/Relay Block (part of the pass fuse box, Cable Mounting Studs)
82660-60370

From @PNWTrailDust (broken cable stud)



[EOD Guy]

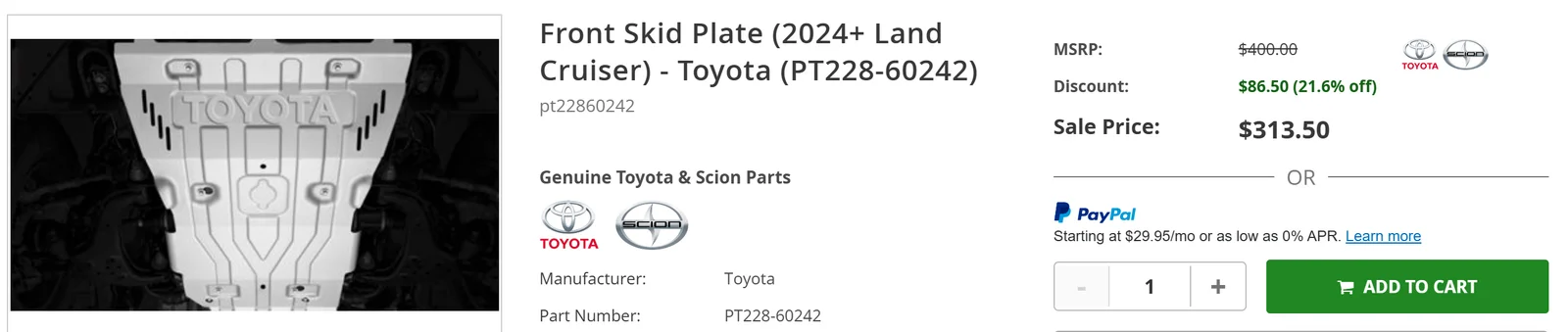

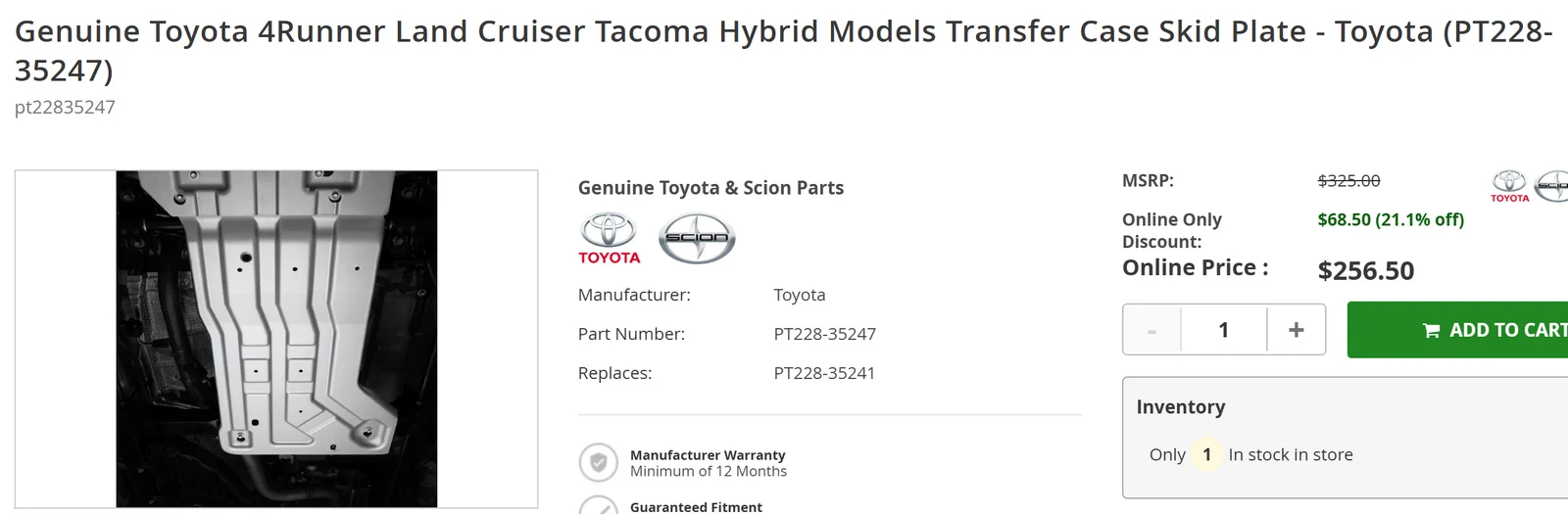

Skid Plates (OEM)

PT228-60242 (Front)

PT228-35247 (Transmission)

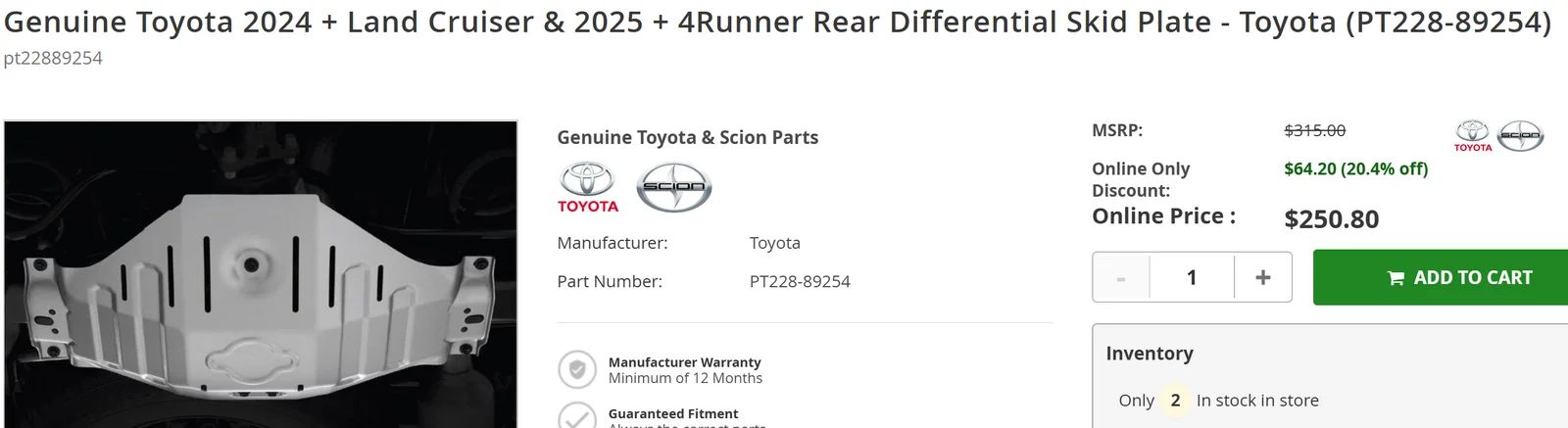

PT228-89254 (Rear Diff)

From: @MaineLC



[BMFS33]

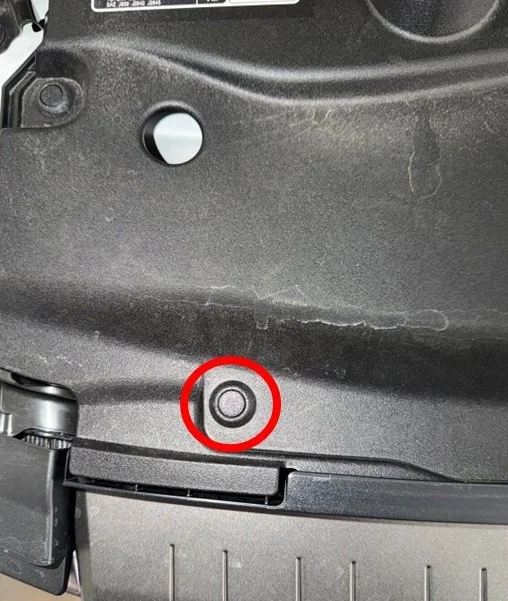

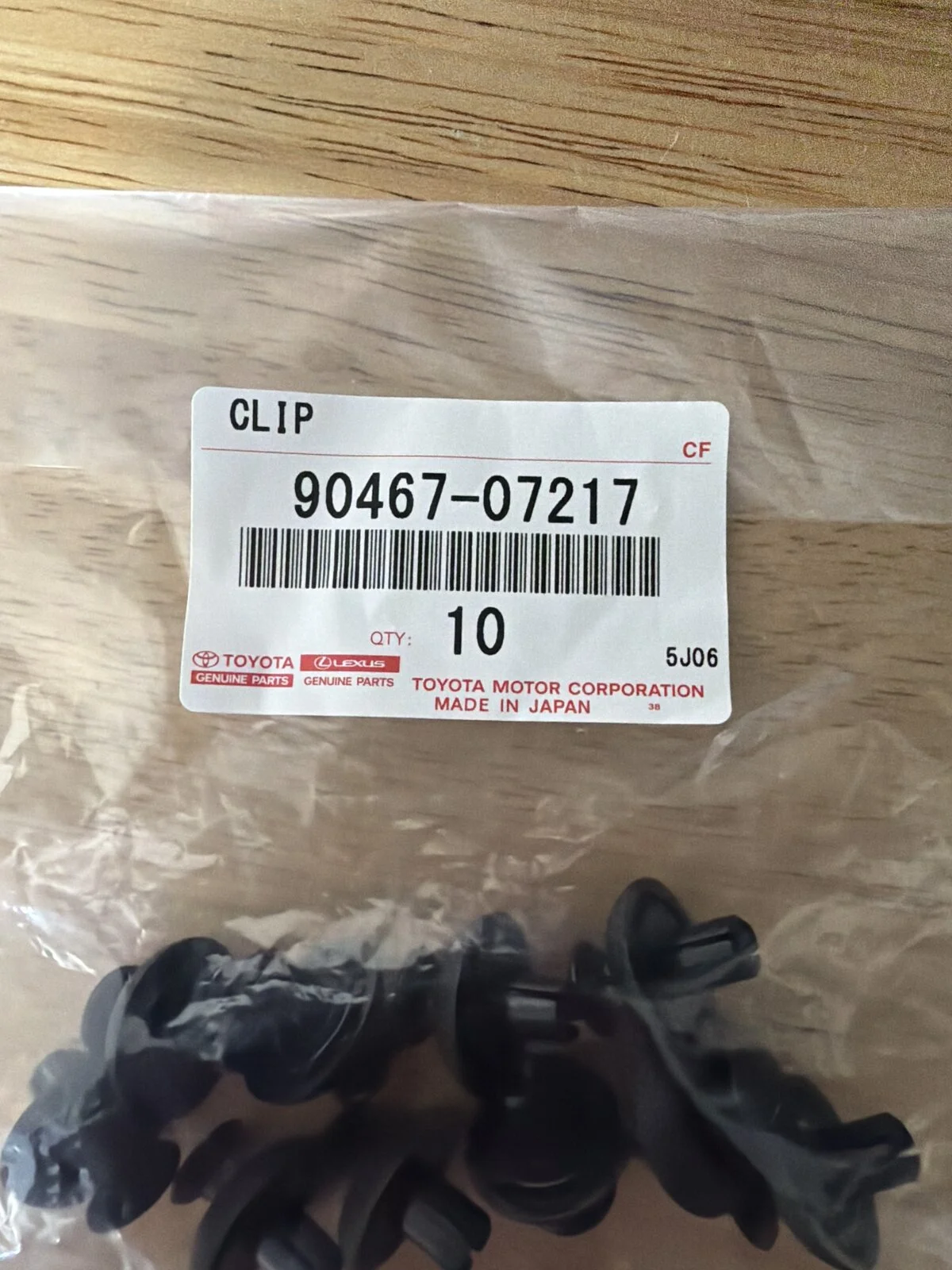

Sight Shield Clip (Radiator Core Support Trim Panel Rivets)
90467-07217



[EOD Guy]

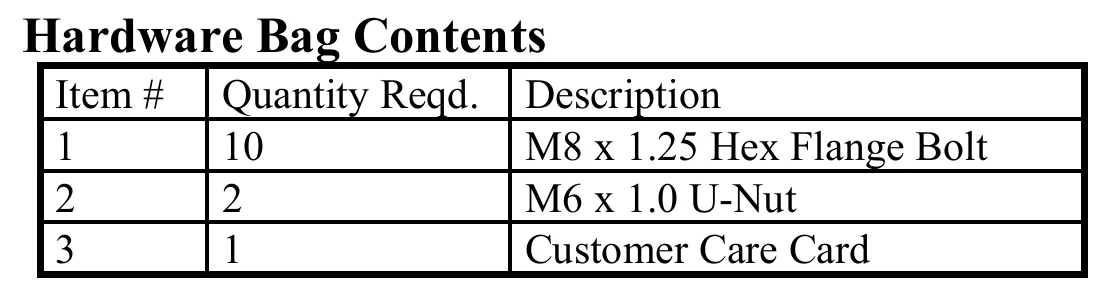

Skid Plate Mounting Bolts

I could not find a part number, but a few people have asked.......... (this is "the exception"). If anyone has the correct OEM part number, I will edit this post.

(Edit: OEM bolt PN are listed in post #82)

Amazon.com : M8 x 1.25 hex flange bolts



[EOD Guy]

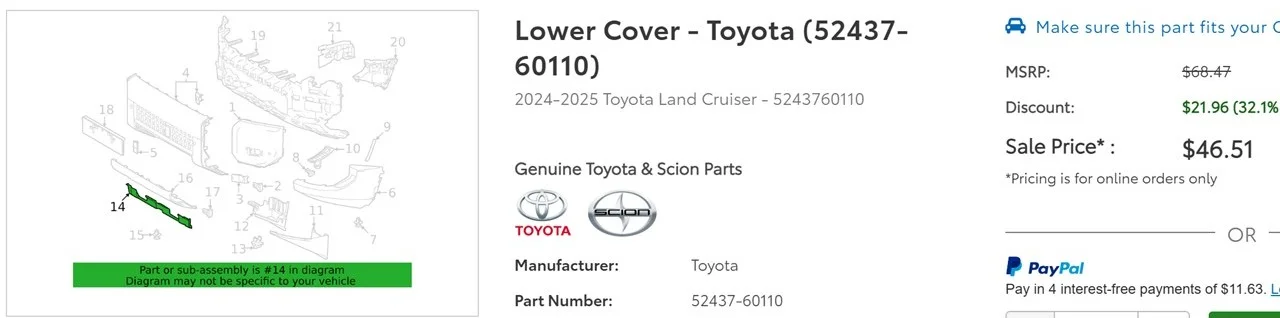

Lower Cover (Front Bumper/Grill Component)
52437-60110



[MAC25LC]

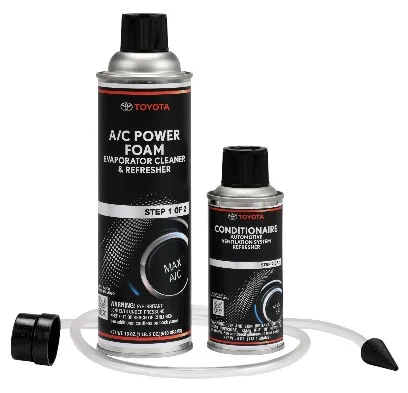

Air Conditioning System Refresh Kit
00289-ACRKT



[Red67FB]

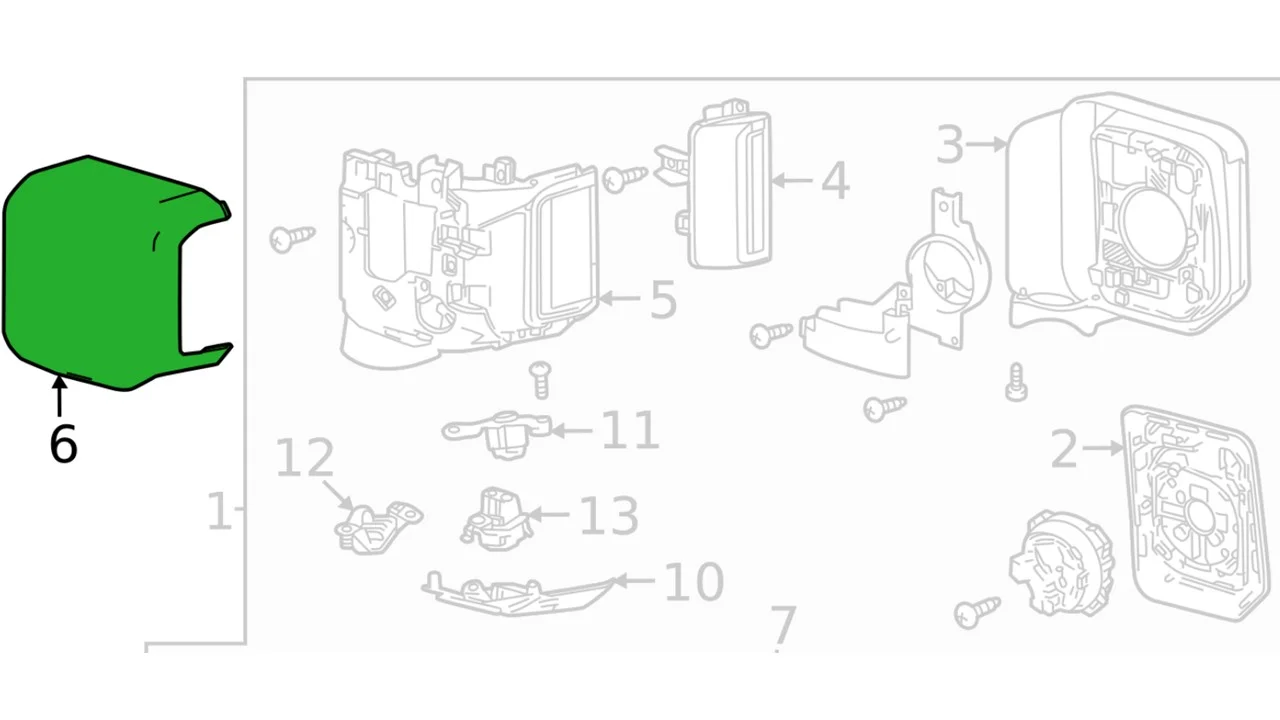

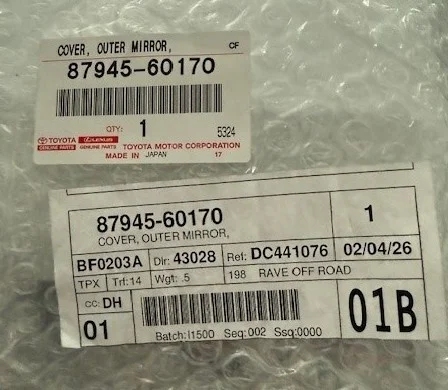

Mirror, Outer Covers
Dvr (?) PN:87945-60170

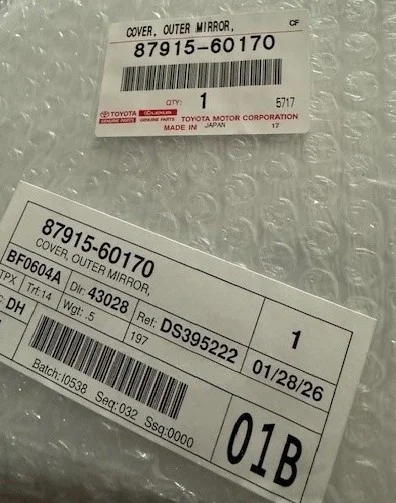

Pass (?) PN: 87915-60170



[EOD Guy]

Rear Wiper Motor
85170-60110



[EOD Guy]

Crush Washers
from @Bad1975

Engine Oil pan crush washer: 90430-12031

-----------------------------------------------------
Rear Diff crush washer: 12157-10010 (Qty. 2)
****** You also need 1 for the front diff Fill Plug ******
(Total of 3 for full service)

-------------------------------------------------------
Front Diff crush washer: 9043024017 (Qty. 1, Drain plug)

--------------------------------------------------
Transfer case crush washer: 9043018008 (Qty. 2)

------------------------------------------------
Transmission: 90430-12008



[EOD Guy]

Mirror, Clear Blinker Lights (Lexus Part Numbers)
Driver 81740-60110
Passenger 81730-60190

From @FishLips



[EOD Guy]

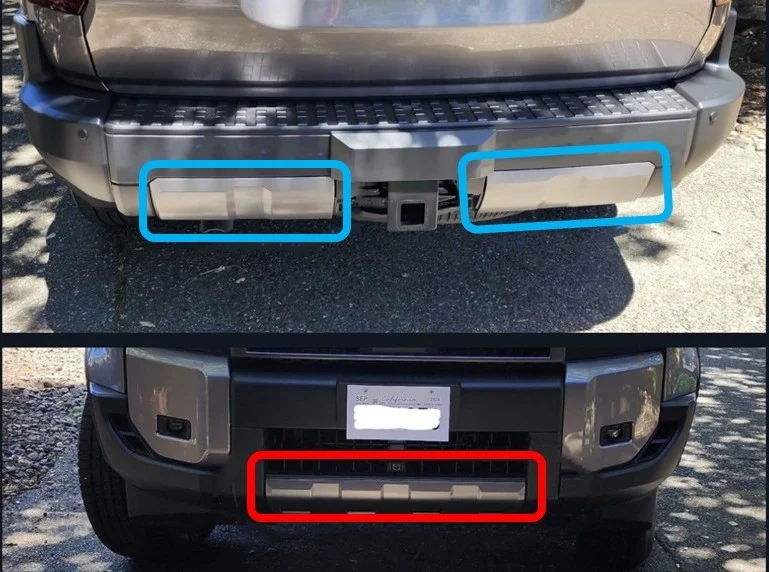

Bumper Trim Panels (Inserts) Silver

Front: 52411-60250
Back L: 52952-60050
Back R: 52951-60050

From @DubDub



[EOD Guy]

Starter Relay (purple)

28300-0A010



[Blue Sky]

*Edit: @EOD Guy Please remove. These wheels are not available in a 6 lug bolt pattern.

BBS TRD Pro Alloy 5 spoke matte black 18x8 Toyota
PT960-34190-02

Offset: 60mm


Source: Ed Martin Toyota



[Blue Sky]

Lug Nut, Tundra (black)
90942-01122



[DubDub]

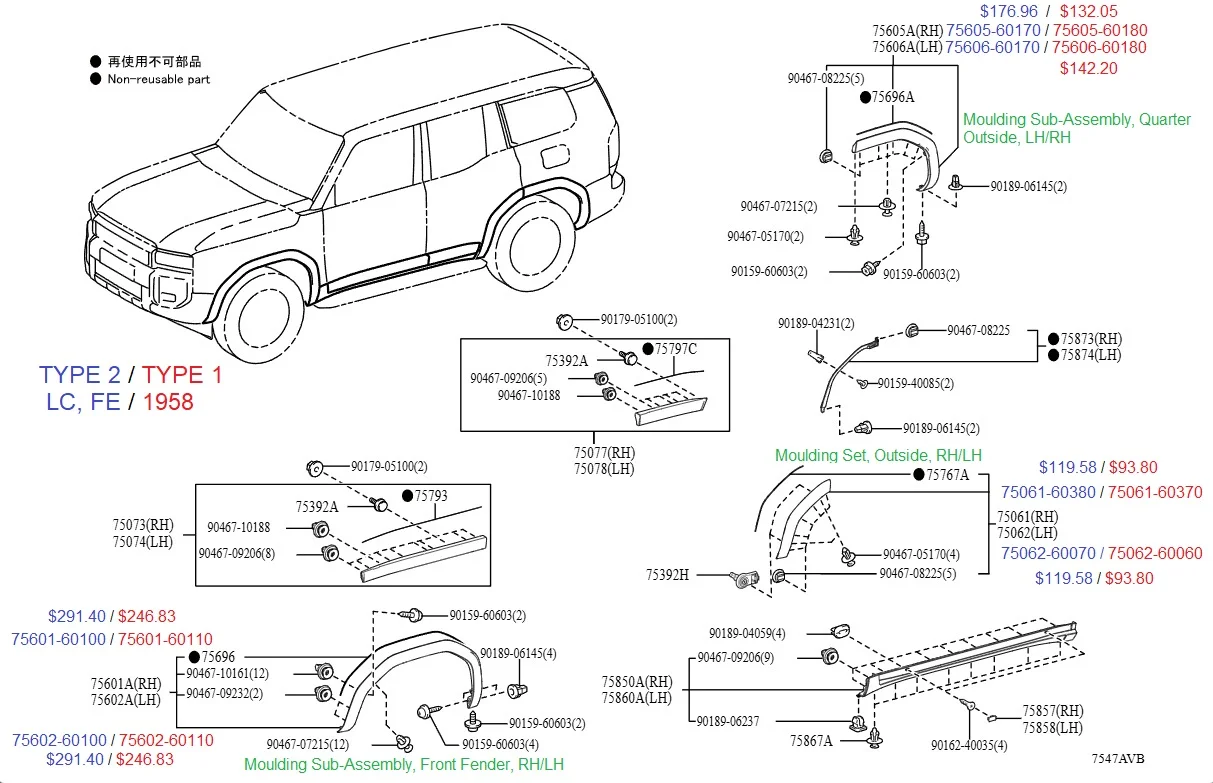

Fender Flares

LCLC and FE (Type 2) are denoted in blue.
1958 (Type 1) are in red. I independently verified these, but credit to @back2lumby for posting Type 2 info in an earlier marketplace thread.

Type 2 - LC and FE trims: (Part location / Part number)
- RH Front / 75601-60100
- LH Front / 75602-60100
- RH Rear (front piece) / 75061-60380
- LH Rear (front piece) / 75062-60070
- RH Rear (back piece) / 75605-60170
- LH Rear (back piece) / 75606-60170

Type 1 - 1958 trim: (Part location / Part number)
- RH Front / 75601-60110
- LH Front / 75602-60110
- RH Rear (front piece) / 75061-60370
- LH Rear (front piece) / 75062-60060
- RH Rear (back piece) / 75605-60180
- LH Rear (back piece) / 75606-60180



[DubDub]

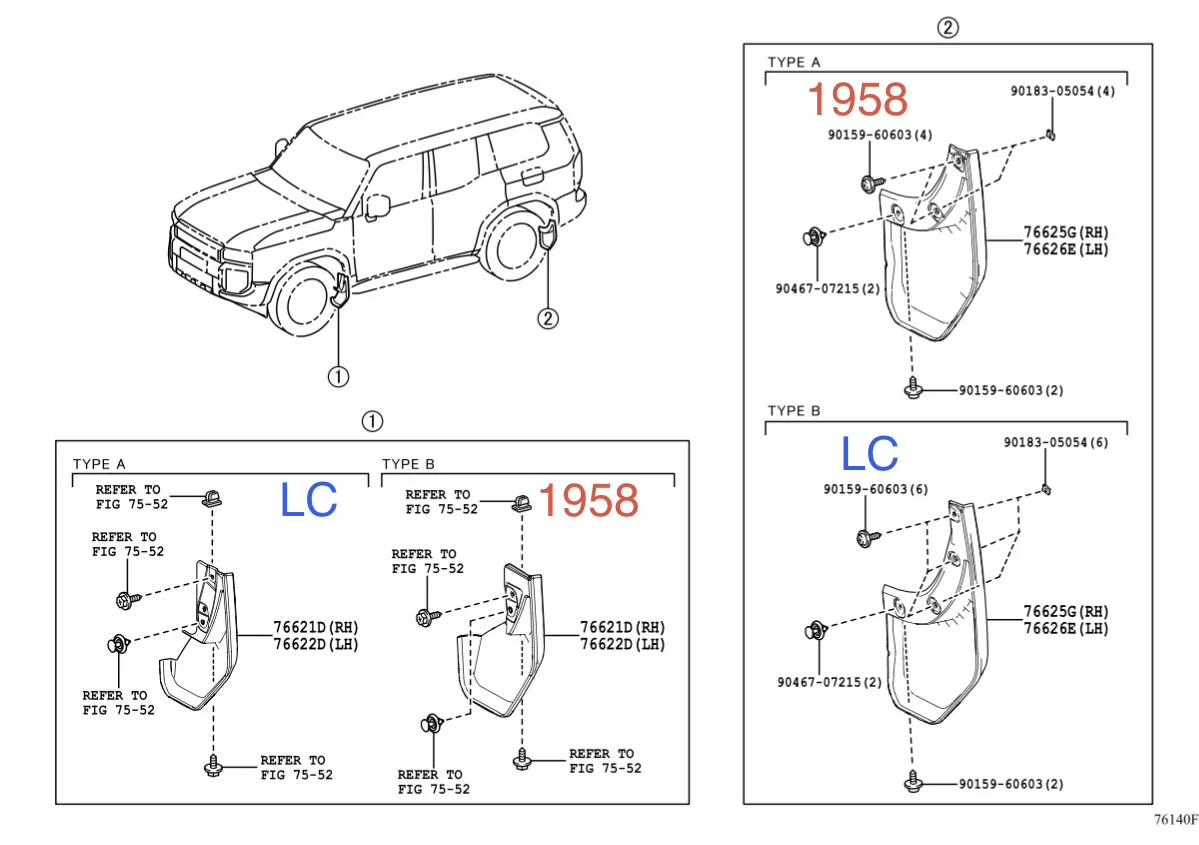

Mudflaps (See image for ref #s. Most retailers differentiate by hole # verification and not by "type".

LC trim:
- RH Front / 76621-60320 (3 hole)
- LH Front / 76622-60220 (3 hole)
- RH Rear / 76625-60470 (4 hole)
- LH Rear / 76626-60470 (4 hole)

1958:
- RH Front / 76621-60320 (2 hole)
- LH Front / 76622-60270 (2 hole)
- RH Rear / 76625-60430 (3 hole)
- LH Rear / 76625-60430 (3 hole)



[DubDub]

Hitch half cover
52169-60230
“Cover, rear bumper, lower”



[HubertLC250]

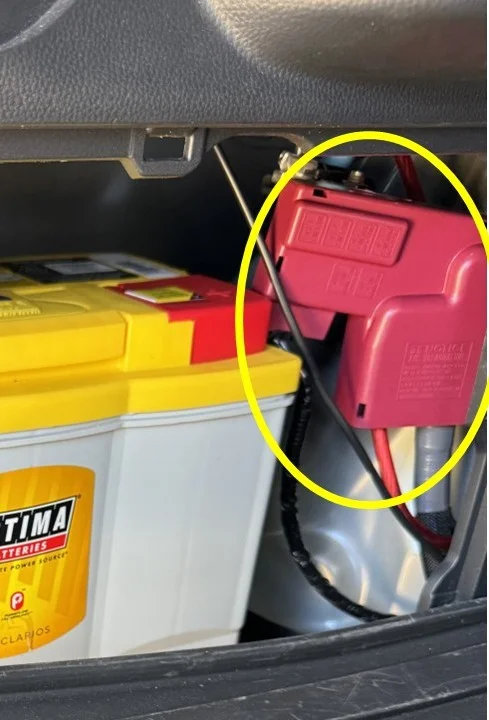

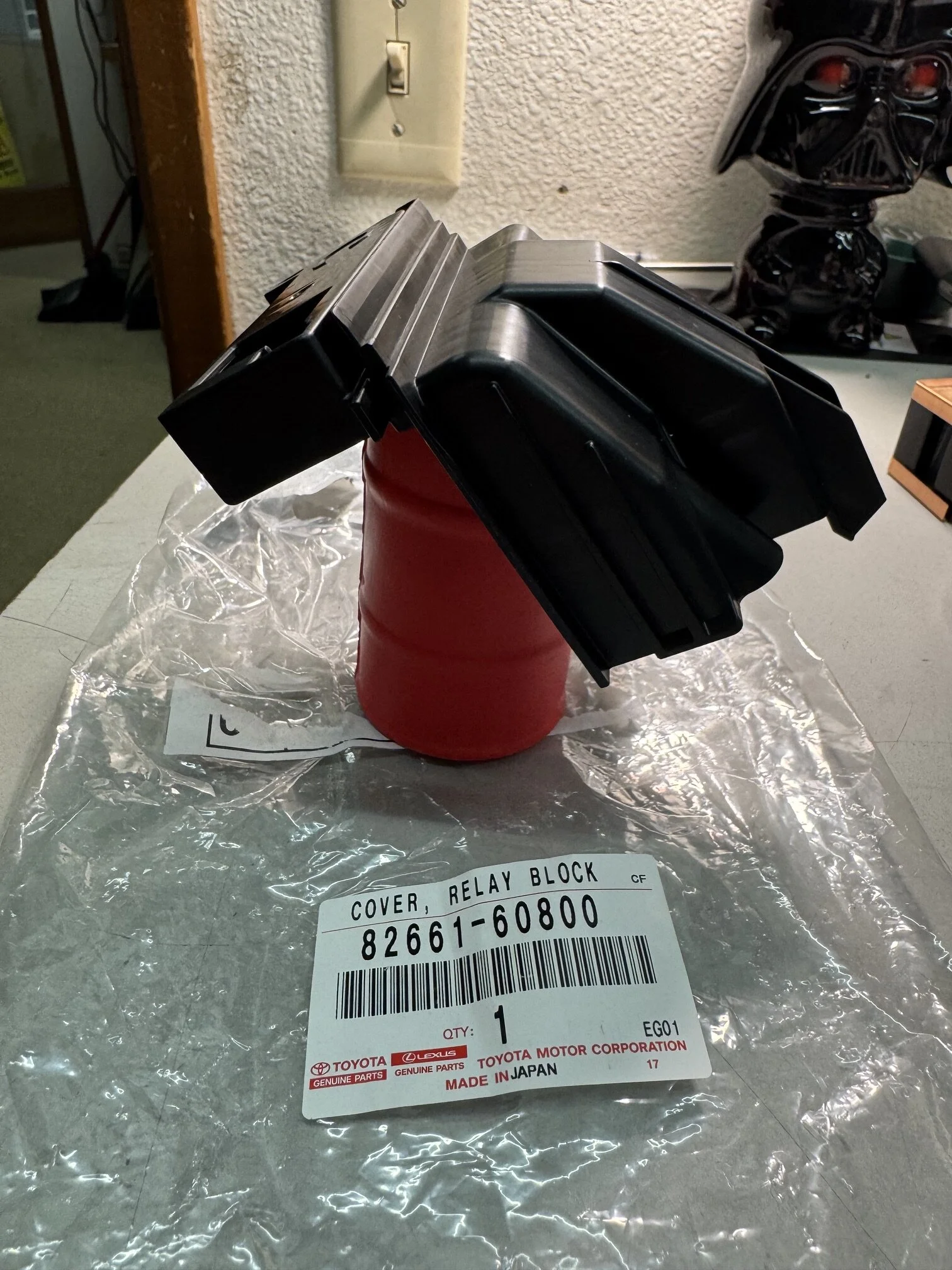

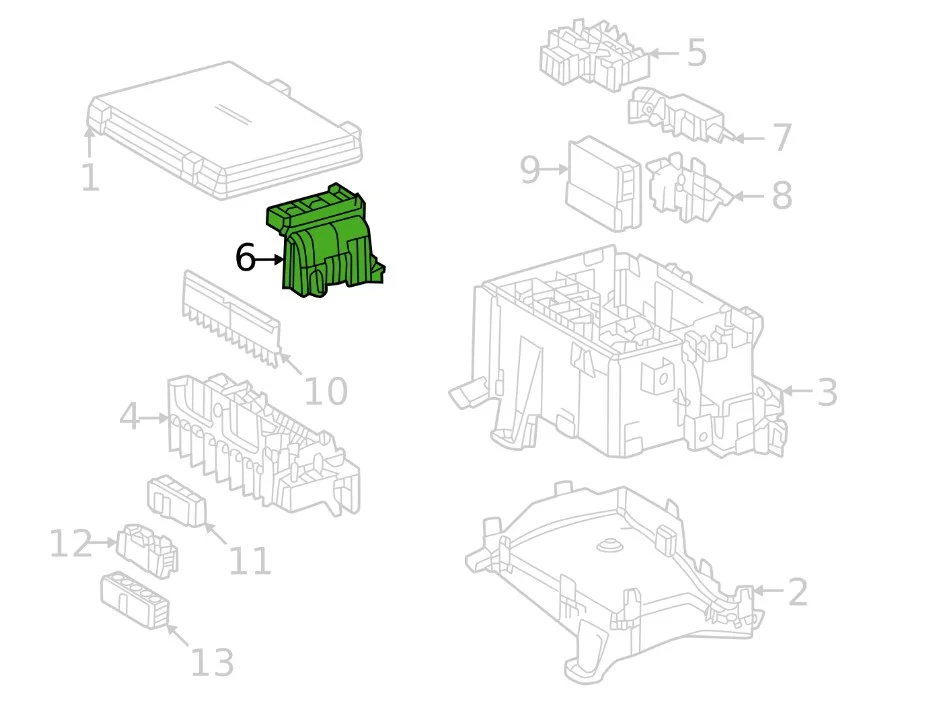

Relay Cover, Engine relay block power cable side cover.
82661-60800
