Instrument Cluster Layout options

[T4xCruiser25]

I just finally figured out how to get the settings cog off the center.

I'm a dual gauge kind of guy, even though the RPM gauge has little useful purpose unless you have it in manual mode.

I'm the same way. I like to see old-school analog tach and speedometer. I find digital speed readouts distracting, but pretty much every car with a digital dash does that now. I guess that's why I still prefer mechanical watches over smart watches.



[EOD Guy]

What I'd like to see........

Left, Tach with the small turbo gauge inset and digital Fuel economy.
Center, Oil Press, Xmsn temp, 12v voltage meter and the digital Hybrid battery %
Right, Speedometer with the small Tire pressure and Pitch and roll.

Dash icon/light for warning messages and a physical button to read "messages"



[AlexGates]

I'm the same way. I like to see old-school analog tach and speedometer. I find digital speed readouts distracting, but pretty much every car with a digital dash does that now. I guess that's why I still prefer mechanical watches over smart watches.

My F150 has a dial speedometer with no numbers. . Why on Earth would anyone do that, designer must be some sort of degenerate.

I prefer an analog watch as well But, I need reading glasses, so hands and dial gauges are faster for me (though I can read the digital just fine.)



[ultane]

Probably a stupid question but I’m going to ask anyway, I see that you’re getting 390 miles on a full tank. And about 23 miles to the gallon. I have 1200 miles on mine. I’m only getting 297 miles on a full tank and my average is 18 miles per gallon. Please tell me that my car will get better with age and more miles?!

Not really a stupid question. The 23.5 is the average since I bought Miss Daisy. I have not reset that, ever. The 390 is what Toyota says my ‘distance to empty’ is. I rarely drive that far. My GF and I take regular potty breaks, when needed, or just stretch our legs. Though I have driven 400-450 miles non stop in my younger years.

I routinely get over 25 mpg, especially on back roads where the speed limit is 45 to 55 MPH. Head winds kill fuel economy. The one trip we made down to Florida this winter, the first tank of gas was doing posted speed limits, even 70 MPH on cruise control on the interstates. I filled up with 93 octane ethanol free (which is all I use) at Buc-ee’s just south Of Macon, Ga and continued on the interstate, only I set the cruise control to 60 MPH. I never had to hit the brakes until I got off the interstate again to fill up the tank. To me, it is much less stressful to just set the cruise control at 60, and let people haul ass as they please. I just get no joy from driving 70 MPH. At this stage of my life, I am just not in a hurry.

Now get off my lawn.. (JK )



[Aryes]

Are there options beyond Driver Support (ACC and TJA), Maps, and Alerts? I'd love it if some of the side display options were available in the center sections.

That's horrible design. ACC is useless, Maps is useless if you use AA/Carplay, Alerts are useless. In Yaris GR you can at least put big gear number, but that's useless in LC aswell.



[GrayBeard]

I think I recall reading a study about this, but regardless I've experienced this myself with my kids (now in their 20s); kids raised with digital devices don't process non-text / character inputs very well at all. Analog watches are entirely foreign to them, and speedometers baffle them.

In my experience (45 min to 1 hour commute one way, every day, for 20 years), drivers are becoming less and less engaged with the act of driving. So coupling that with their reduced ability to process non-text inputs, the functionality of a gauge (a split second glance to see if you're essentially where you want to be, i.e. I don't care if I'm doing 64 or 68 miles per hour, I care that I'm somewhere between 60 and 70 when I take a quick glance and put my eyes back o the road) is meaningless.

Interesting (to me) tangent on that is that Gen Z seems to have a huge portion of population that can't watch a TV show without subtitles, sort of reinforcing the concept. They didn't grow up processing verbal / audible sounds augmented with visual queues of body language and such; they're far more likely to have had their interactions be through text, even when sitting right next to each other.

Back to the original topic, for anyone who goes single dial/gauge and want the speedometer dial, you can change the tach to a speedo in the gauge settings.



[omgponies]

The first few weeks that I had it, I spent a ton of time customizing it and then randomly it would totally reset and I would do it all over again - not sure what I did differently, but eventually it "took" and now I don't want to touch it and get back into some weird reset mode again.

(similarly when I first got it, CarPlay would regularly reset and I would have to reconfigure and around the same time it "took" - no idea why or what changed - wasn't a dealer trip or anything, it was like it passed some break in period and decided I was allowed to stay)



[Meteor1]

Probably a stupid question but I’m going to ask anyway, I see that you’re getting 390 miles on a full tank. And about 23 miles to the gallon. I have 1200 miles on mine. I’m only getting 297 miles on a full tank and my average is 18 miles per gallon. Please tell me that my car will get better with age and more miles?!

It'll slowly creep up. I'm approaching 5000 miles, averaging 21-22 mpg with a range of about 320 now. About 30 miles more than what I was getting 3 months ago. The range will adjust to your driving habits.



[T4xCruiser25]

The first few weeks that I had it, I spent a ton of time customizing it and then randomly it would totally reset and I would do it all over again - not sure what I did differently, but eventually it "took" and now I don't want to touch it and get back into some weird reset mode again.

(similarly when I first got it, CarPlay would regularly reset and I would have to reconfigure and around the same time it "took" - no idea why or what changed - wasn't a dealer trip or anything, it was like it passed some break in period and decided I was allowed to stay)

I got my LC two weeks ago and had the exact same thing happen to me. The first couple of times I changed settings on the dash and in the infotainment screen, they would randomly reset next time I started the car. A few days later it just took (except for some safety options that you just cannot turn off permanently). I suspect these settings are tied to my driver profile, which is somehow tied to the Toyota app on my phone. The car and the app may have had some issues syncing when the car was new, causing my settings not to be properly saved online to my profile. So the next time I started the car, it loaded the old settings from my online profile. It's a stupid setup, especially considering that, to set up a second driver profile for my wife, she will have to share my login in her Toyota app. I know this because we had a Highlander before this and I wasted a lot of time trying to get her app to work.



[Aryes]

I got my LC two weeks ago and had the exact same thing happen to me. The first couple of times I changed settings on the dash and in the infotainment screen, they would randomly reset next time I started the car. A few days later it just took (except for some safety options that you just cannot turn off permanently). I suspect these settings are tied to my driver profile, which is somehow tied to the Toyota app on my phone. The car and the app may have had some issues syncing when the car was new, causing my settings not to be properly saved online to my profile. So the next time I started the car, it loaded the old settings from my online profile. It's a stupid setup, especially considering that, to set up a second driver profile for my wife, she will have to share my login in her Toyota app. I know this because we had a Highlander before this and I wasted a lot of time trying to get her app to work.

I think I read somewhere that each key has it's own profile. That means that unlocking car with different key, the seats will move to different position and probably also different cluster settings.



[gteech]

I found it time consuming to cycle through all the layout options every time I went looking etc........ (Pics are slightly out of focus and may not be all inclusive)
I have found that setting up the three available dashes with different selections, I can quickly navigate through the three while driving.

Blue border is the left hand
Red border is the right hand

THANK YOU for this! I've taken a screenshot of what I'd like to display on the left side. I can't seem to get it to work for me. Please let me know the steps of how you did this. I have a 2025 LC not the 1958.



[bluebullet]

Probably a stupid question but I’m going to ask anyway, I see that you’re getting 390 miles on a full tank. And about 23 miles to the gallon. I have 1200 miles on mine. I’m only getting 297 miles on a full tank and my average is 18 miles per gallon. Please tell me that my car will get better with age and more miles?!

your car will get better with age and more miles!



[EOD Guy]

THANK YOU for this! I've taken a screenshot of what I'd like to display on the left side. I can't seem to get it to work for me. Please let me know the steps of how you did this. I have a 2025 LC not the 1958.

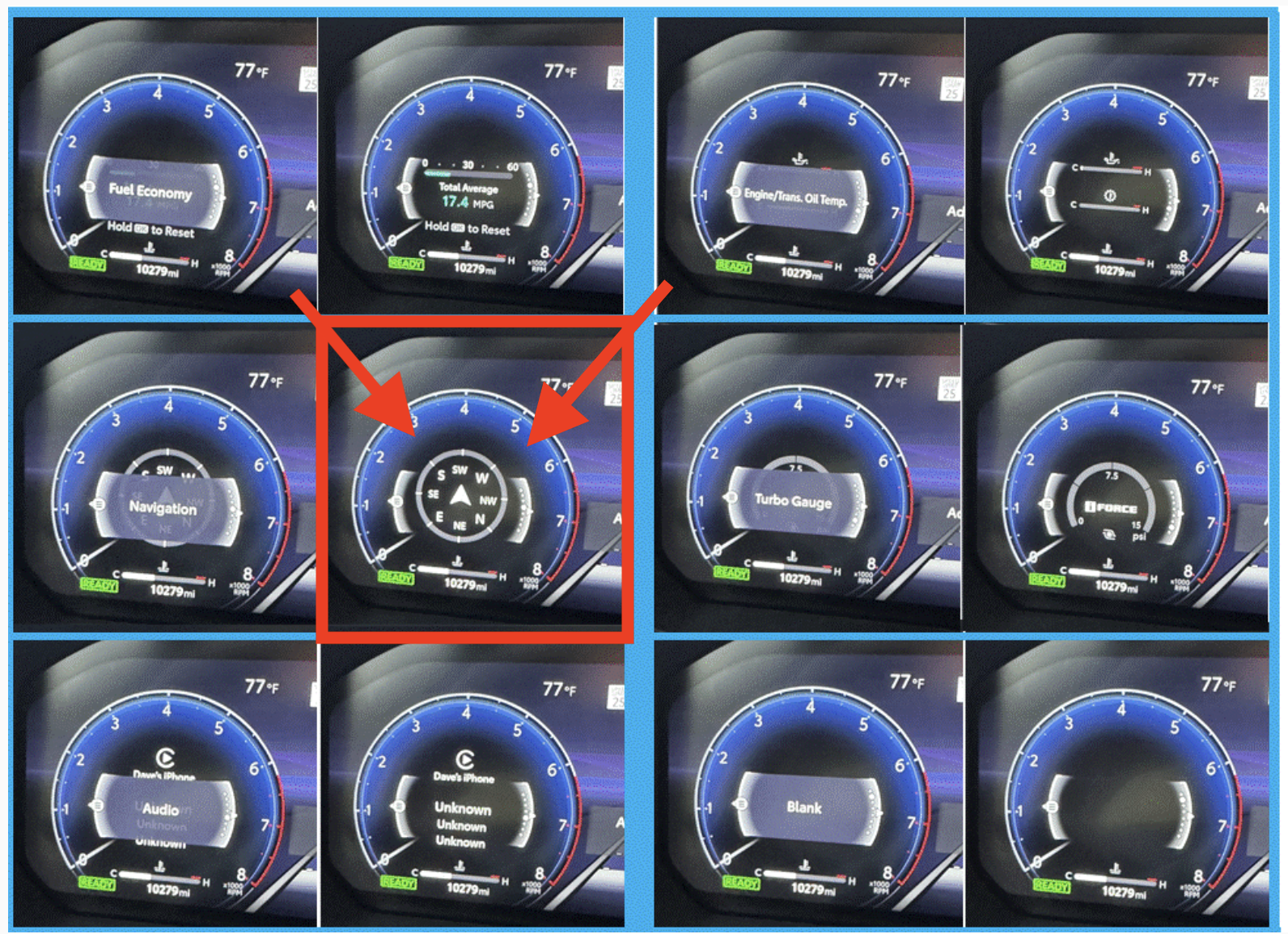

View attachment 39982

Use the down arrow, select which view (1, 2 or 3)
Push and hold the "OK" to enter the "custom" mode
Push the "left" arrow (focus should move to the left side)
Use up and down arrows to scroll through the gauge options, stopping on the one you want, then Press the "right" arrow to bring the focus back to the center section.



[gteech]

Use the down arrow, select which view (1, 2 or 3)
Push and hold the "OK" to enter the "custom" mode
Push the "left" arrow (focus should move to the left side)
Use up and down arrows to scroll through the gauge options, stopping on the one you want, then Press the "right" arrow to bring the focus back to the center section.

THANK YOU! Now to see if I can get it to look this way. I failed miserably the first time.

I had it there. I was on the wrong display screen. Thanks for your instructions. I think the first time I didn't press the right arrow to return to the middle.

THANK YOU!



[mrCharlie]

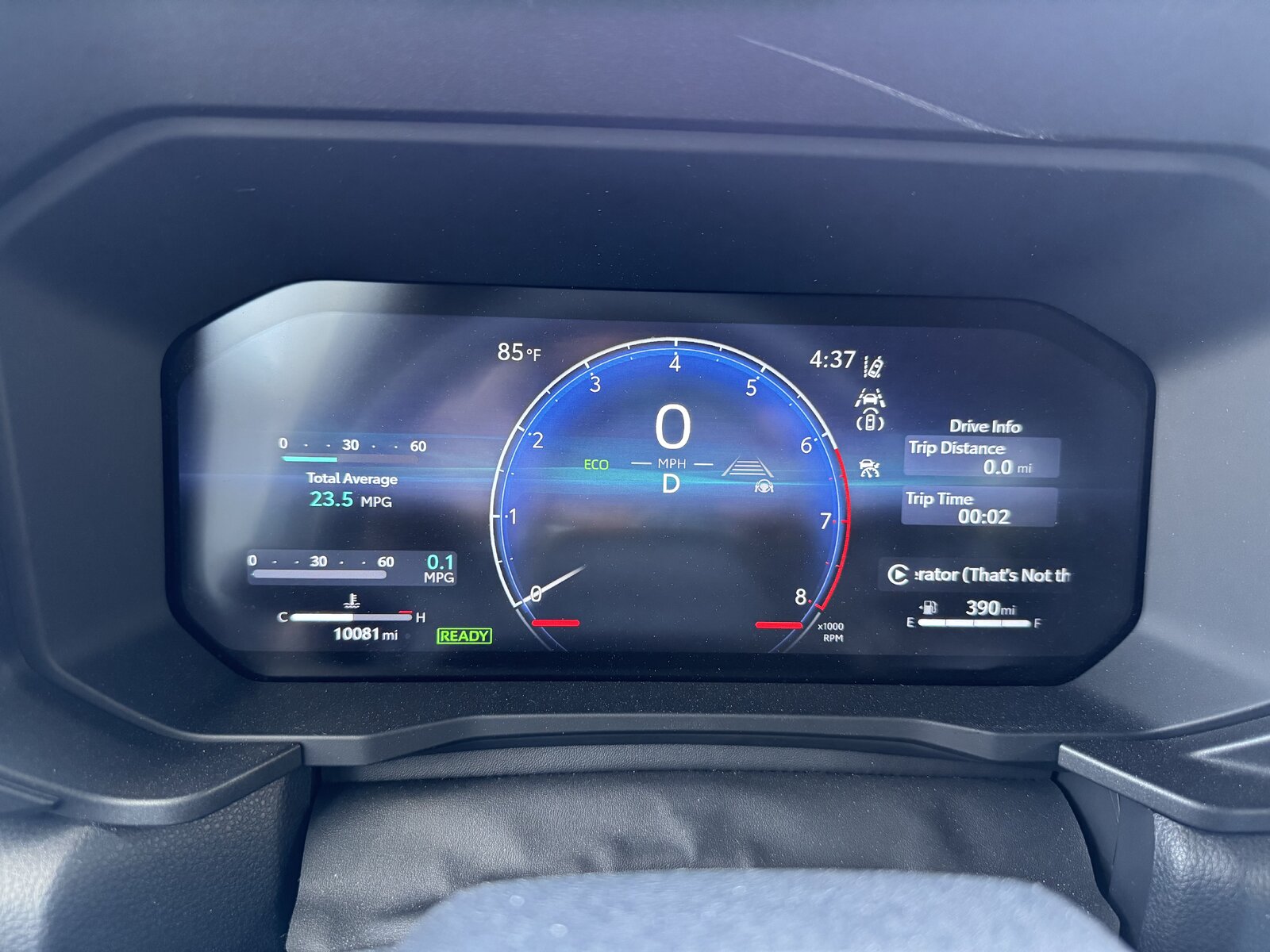

I went with a simple layout. When it gets too busy, too much information, it is just a distraction while I am driving. View attachment 38854

I usually like digging around and figuring things out, but I've been through all the settings and I'm at a loss. Hopefully this wasn't already explained elsewhere... How do I get the MPG gauge above Temp, and music above fuel level?

I'm using the single dial layout, got used to it back when I had the 1958 and didn't think the larger cluster added much when I moved to the Premium. Perhaps those two additional data boxes will sway my mind...(or at least let me see both turbo and max boss while monitoring mpg).



[mrCharlie]

In case anyone else is looking, I found the answer to my question in another post about adding the MPG and now playing widgets to the single gauge layout. Still don't understand why Toyota had to make this so convoluted, but my views just became a lot more useful.

Instrument cluster

With the digital instrument cluster being so customizable, there must be 1 million different configurations. Most of you guys have your preferences of what you want displayed and where and I’m sure they all differ. Let’s see some pictures of your customizations, I’m sure it will be interesting...

www.landcruiserforum.com



[cccbryan]

I went with a simple layout. When it gets too busy, too much information, it is just a distraction while I am driving. View attachment 38854

I am a new owner of a 2025 LC. I've been playing around with the 3 different screen settings but I don't see where to get this simple layout on mine? Can you point me in the right direction?



[EOD Guy]

I am a new owner of a 2025 LC. I've been playing around with the 3 different screen settings but I don't see where to get this simple layout on mine? Can you point me in the right direction?

Post #1 for pictures of the available options.......... (next to the last set of pictures).

Navigate to the center screen, then scroll down to:
"Meter Settings"
"Meter Type"
Select one of the three.......... (No dial, One dial or Two Dials)
Use the left arrow key to move the focus to the Left side and select your "Widgets"
Use the right arrow key to move the focus to the right side and select your "Widgets"
Use the arrow keys to move the focus to the center.



[ultane]

I am a new owner of a 2025 LC. I've been playing around with the 3 different screen settings but I don't see where to get this simple layout on mine? Can you point me in the right direction?

I don’t even remember.. I did that a year ago.. Mostly just playing around with it while parked, and idling.



[cccbryan]

Post #1 for pictures of the available options.......... (next to the last set of pictures).

Navigate to the center screen, then scroll down to:
"Meter Settings"
"Meter Type"
Select one of the three.......... (No dial, One dial or Two Dials)
Use the left arrow key to move the focus to the Left side and select your "Widgets"
Use the right arrow key to move the focus to the right side and select your "Widgets"
Use the arrow keys to move the focus to the center.

I have changed to the one dial setting. I think I like it better than the two dial setting. I elected to show the widgets. My question is if there is a way to change the widgets? I would like to change the trip fuel economy to the tank fuel economy. I always reset my trip meter when I fill up and keep an eye on the fuel economy over the course of the tank. I am OK with the radio widget as it is in the bottom right.
